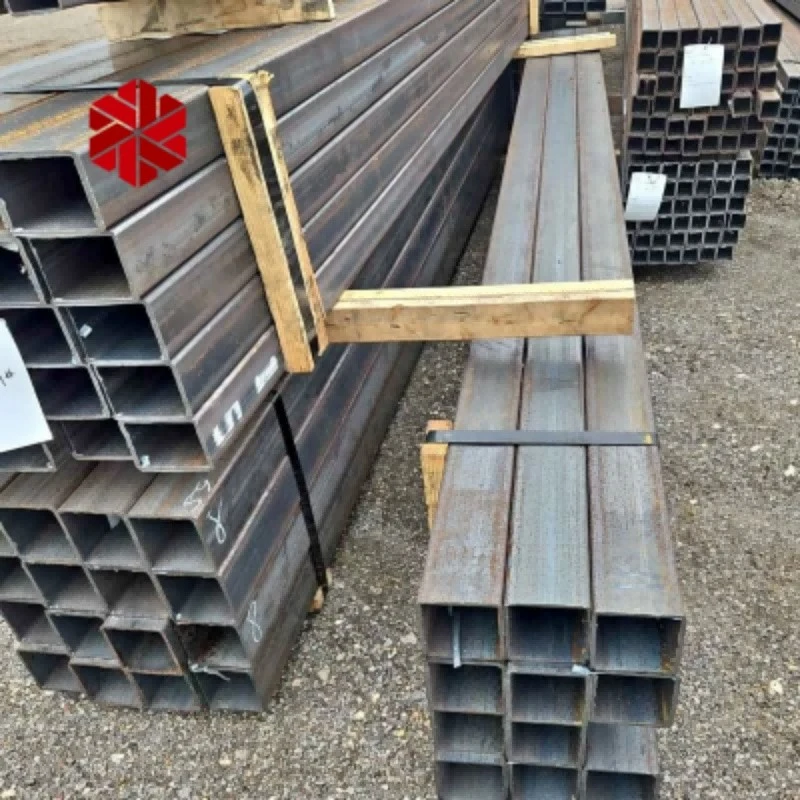

2 Inch Square Tubing
2 Inch Square Tubing in a full range of sizes and grades, with stock lengths, cut-to-length service, third party inspection and mill test certificates on request. Send your size list and destination port for a quote within 12 hours.
A racking supplier in Nigeria kept ordering 2 inch square tubing by name and kept getting sections that would not sit flat on the baseplates. The outside was right; the corner squareness and the wall tolerance were not, and nobody had written a tolerance on the enquiry. Two inch square tubing is a nominal size, and everything that decides whether it assembles cleanly sits in the tolerances behind that number. This page covers what the size actually measures, what we supply, and what is worth writing down.
What 2 inch square tubing measures
Two inch refers to the outside dimension of the square section, which works out to 50.8 mm. The wall is a separate choice and the same outside can be supplied in anything from light to heavy wall, which is why two buyers ordering the same nominal size can end up with material that behaves completely differently. If you are specifying for a structure rather than for a frame, name the wall as well as the size. If the tube has to match an existing piece, give us the measured outside, the wall and the nominal grade, because the trade name alone will not narrow it down enough.
Size range and tolerances
Square tube is supplied from 20 mm to 500 mm in outside size with wall from 1.2 mm to 16 mm, and rectangular tube from 30 x 20 mm to 610 x 400 mm with wall from 1.5 mm to 16 mm. Round tube runs from 21.3 mm to 610 mm in diameter with the same 1.2 mm to 16 mm wall range. Outside dimension tolerances run from plus or minus 0.5 mm to plus or minus 4.0 mm on square and rectangular sections, and up to plus or minus 6.1 mm on round sections, widening as the section grows. Wall thickness tolerance is plus or minus 10 per cent for walls under 10 mm and plus or minus 8 per cent for walls over 10 mm. On lengths, ordinary grade material is supplied from 4000 mm to 12000 mm at plus 7.0 mm, and precision grade from 4000 mm to 6000 mm at plus 5.0 mm or from 6000 mm to 12000 mm at plus or minus 10.0 mm. If your design assumes a tight tolerance, say so at the enquiry stage, because the ordinary grade will not hold it.

How it is welded
The section is formed from steel strip and closed by high frequency resistance welding, with arc welding or other methods available for particular sizes and wall combinations. The welded seam is then formed into the square or rectangular profile and the tube is cut to length. The welding method matters most where the tube will be loaded, since the seam is where a failure will start. If a job requires a particular weld quality or a specific inspection standard, tell us, because that shapes how the tube is ordered from the mill rather than being something we can add after the fact.
Why buyers standardise on it
Two inch square tubing sits at a convenient size for a lot of work: large enough to carry real load and to bolt through, small enough to keep weight and cost sensible. It is used for frames, racking, guards, supports, gates and general fabrication, and it works with ordinary shop tools. The closed section resists bending and twisting well for its weight and the flat faces accept brackets without packers, which is why it turns up wherever structures are assembled rather than fabricated from scratch.
Questions buyers ask us
Is 2 inch exact? It converts to 50.8 mm outside. If you need an exact dimension, specify the millimetre measurement rather than the trade name.
Can you supply precision grade lengths? Yes, where the job needs them. It costs more and takes longer, so it is worth only specifying if the tolerance is genuinely needed.
What wall should I choose for a racking upright? Send the height, the load and the span between brackets and we will work it through with you.
Do you supply cut lengths? Yes, send the list and we will size before packing.

Get a quote
Send the outside size, wall thickness, length, grade, tolerance requirement if the drawing names one, quantity and destination port. We reply within 12 hours with per-tonne pricing, stock position and the earliest loading date we can hold. If the tolerance you need is precision grade, we will say so up front so the schedule reflects it.
