Galvanized Scaffolding Pipe (EN 39 / BS 1139, 48.3 X 3.2 Mm)
EN 39:2001 / BS 1139 scaffold tube, 48.3 x 3.2 mm, 6 m, Q235B or S235JR. ERW welded on our own mill, hot dip galvanized in our own kettle, 275 g/m2 outside and zinc inside the bore, square cut and deburred, straightness 1/600, OD held at 48.3 +/-0.4 mm so couplers actually clamp.
Scaffold tube looks like the simplest item on our list and it is the one that produces the angriest phone calls. The reason is always the same number. 48.3 mm outside diameter is not a rough guide. Every coupler, base jack, ledger clamp and swivel on a scaffold is made to grip that diameter, and a tube measuring 47.6 mm will still slide into the coupler and still feel tight when a lad turns it by hand. It lets go six weeks later, on a Tuesday afternoon, with a crew standing three lifts up.
A rental company in Jeddah rang me in June about exactly that. They had bought 4,000 lengths of "48.3" from a trader the year before and their fitters were adding packing shims inside the couplers to stop the ledgers walking. I asked for three random tubes off their rack and had them measured here. Two came in at 47.5 and 47.7, the third at 48.0. Every one of them was inside the tolerance of the mill that made it, and every one was wrong for the job. We quoted them 48.3 with the minus side capped at 0.2, sent a trial bundle, and their fitters stopped buying shims. Their yard manager told me the shims were costing him more per month than the price difference on the steel.
Specifications
| Item | Range |
|---|---|
| Standards | EN 39:2001, BS 1139-1, GB/T 3091, AS/NZS 1576 on request |
| Outside diameter | 48.3 mm standard; 42.4 / 60.3 mm for other systems |
| Wall thickness | 3.2 mm standard; 4.0 mm heavy duty; 2.75 mm light duty |
| Length | 6.0 m standard, 5.8 / 4.0 / 3.0 m cut to order |
| Steel grade | Q235B, S235JR, S355JR |
| OD tolerance | ±0.4 mm, minus side capped at 0.2 mm for coupler work |
| Wall tolerance | −0 / +10%, minimum wall guaranteed at 3.2 |
| Straightness | 1/600 of length, checked on a 6 m bed |
| Zinc coating | Hot dip, 275 g/m² outside typical, 210 g/m² inside bore; 400 g/m² on request |
| Weld | ERW, seam eddy current tested, no rewelded seams supplied |
| Ends | Square cut, deburred, burr under 0.5 mm, no chamfer unless asked |

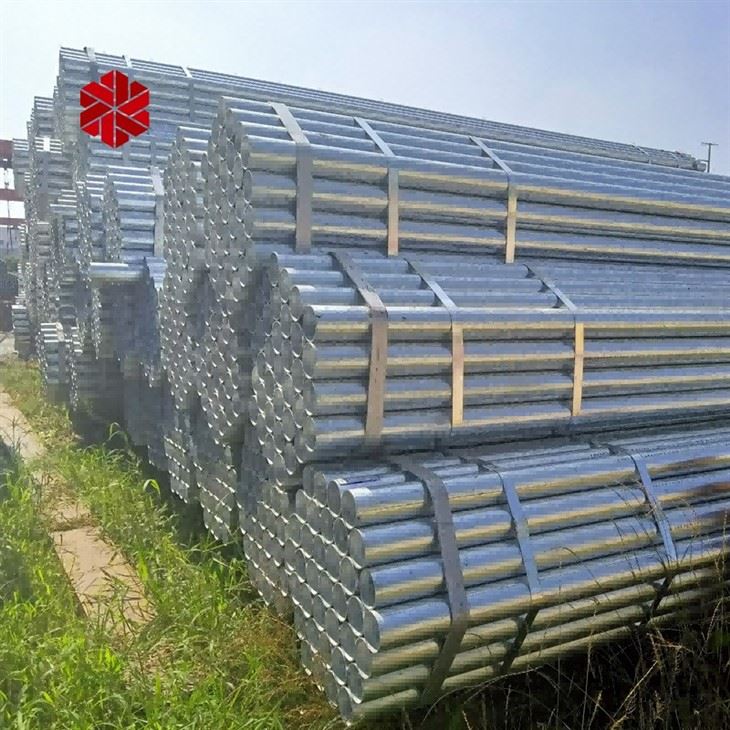

| Bundle | Hexagonal, 61 pcs of 6 m, steel strap plus nylon band |
| Documents | EN 10204 3.1 MTC, zinc coating weight report per batch |
Why the wall matters more than the price per tonne
A 2.75 mm tube and a 3.2 mm tube look identical in a photograph and weigh 15 percent apart, which is where the cheap quote comes from. On a loaded scaffold, that difference goes straight into the buckling check. I will not tell a customer that 2.75 is unsafe, because in light duty systems with closely spaced standards it is a legitimate product and some markets run it every day. I will tell him what it is, and then let him decide with the numbers in front of him. What I will not do is ship 2.75 and label it 3.2, and if your inspector measures wall at the dock he will find 3.2 or better on every tube that leaves here.
Galvanizing inside the bore is the part nobody photographs

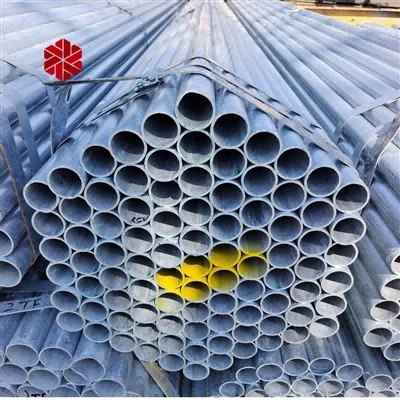

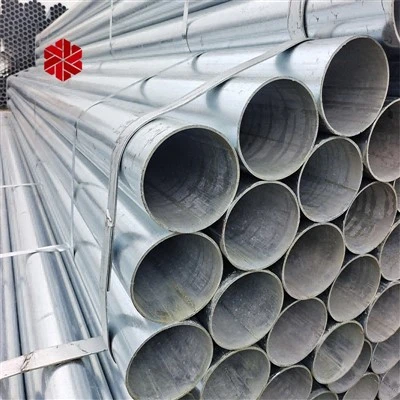

Most of the corrosion on a scaffold tube starts inside, where rain sits and where nobody looks until the tube is rattling with rust flakes. Our tube goes through our own hot dip kettle after welding, with the ends open so the zinc runs through the bore, and we blow the excess out before it sets. The result is a dull grey interior with a zinc layer you can see and measure, not the bare black wall you find in tubes that were "galvanized" by spraying the outside only. When a customer wants proof, we cut a length in half and send the section with the coating weight report. Two buyers have taken that offer this year, and both ordered afterwards.
Couplers, threads and the fittings you already own
We supply plain end tube. If your system is threaded, the wall at the thread root is what decides whether the joint holds, and 3.2 mm gives you enough meat for a standard BSP thread without cutting through. Tell me if the tube is going into a threaded system and I will hold the wall on the plus side of 3.2 rather than nominal, because a thread cut into a thin wall is a fatigue crack waiting for its moment. For cuplock and ringlock systems the tube is usually plain end with a fixed length tolerance of plus or minus 5 mm, and we cut to that on a stop gauge rather than by eye.
Loading and mixed orders
A 40 ft container takes roughly 1,150 lengths of 6 m at 48.3 x 3.2, around 25 tonnes, depending on how the bundles are built. We load standing on end in three rows with timber dunnage between lifts, because a bundle that shifts in a seaway arrives looking like bent scrap and nobody wants that argument at the destination port. Mixed orders of 6 m and 3 m are banded separately with the size stencilled on the strap tag. A hire company in Manila orders 6 m standards and 1.5 m ledgers in the same box every quarter and their yard crew now unloads by tag colour, which was their idea and a good one.
Request a Quote
Send the diameter, wall, length, quantity and the port, plus the coupler type you are using if you know it. If you are replacing a batch that slipped, tell me the measured diameter you are fighting and I will quote a controlled OD window instead of the standard one. A sales engineer replies within 12 hours with price, coating weight and the next galvanizing batch date.
