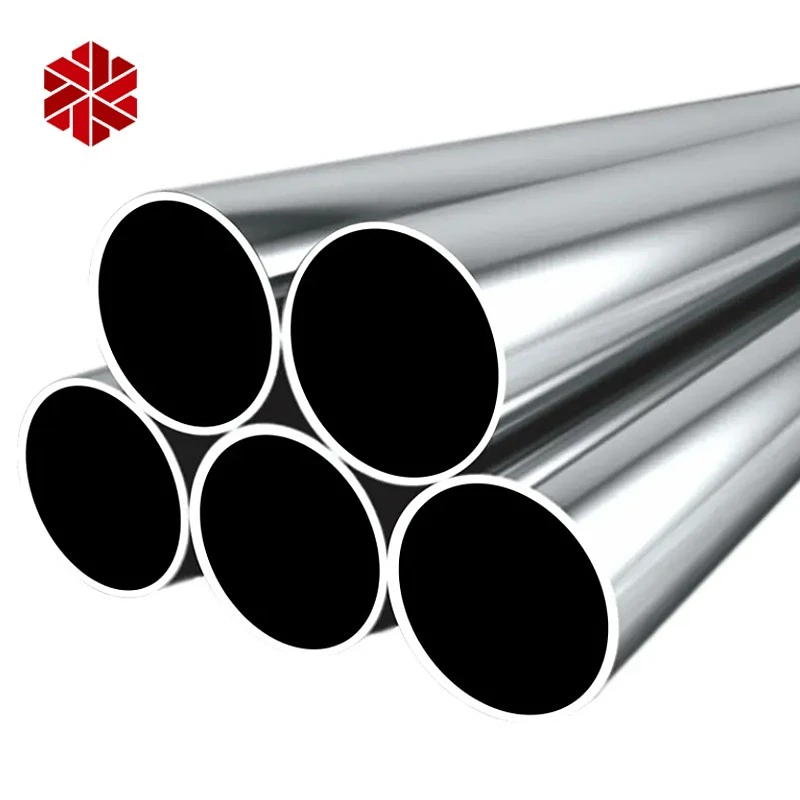

cold drawn steel tube 2

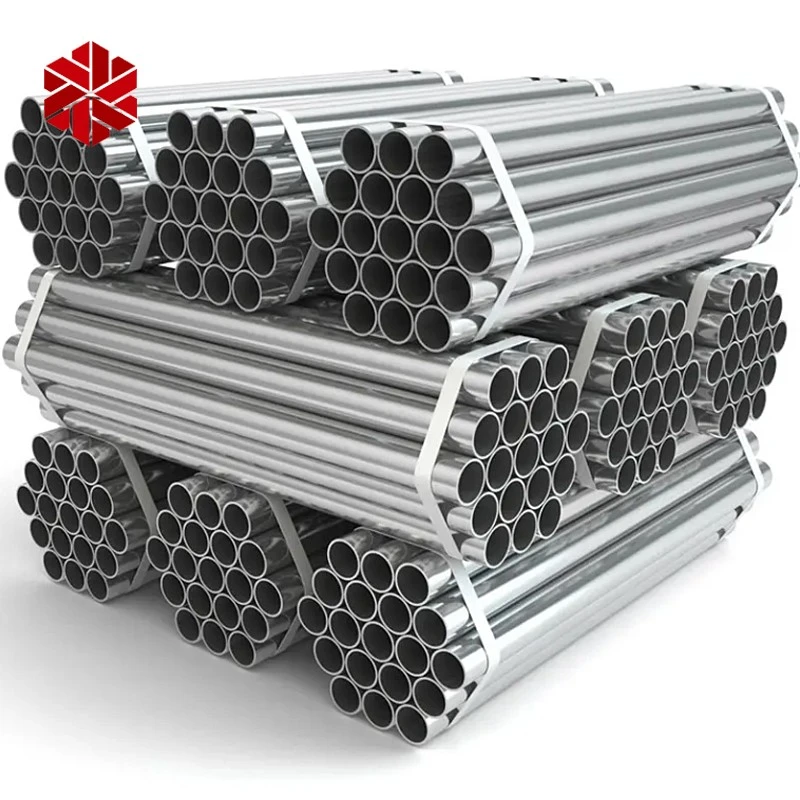

cold drawn steel tube 3

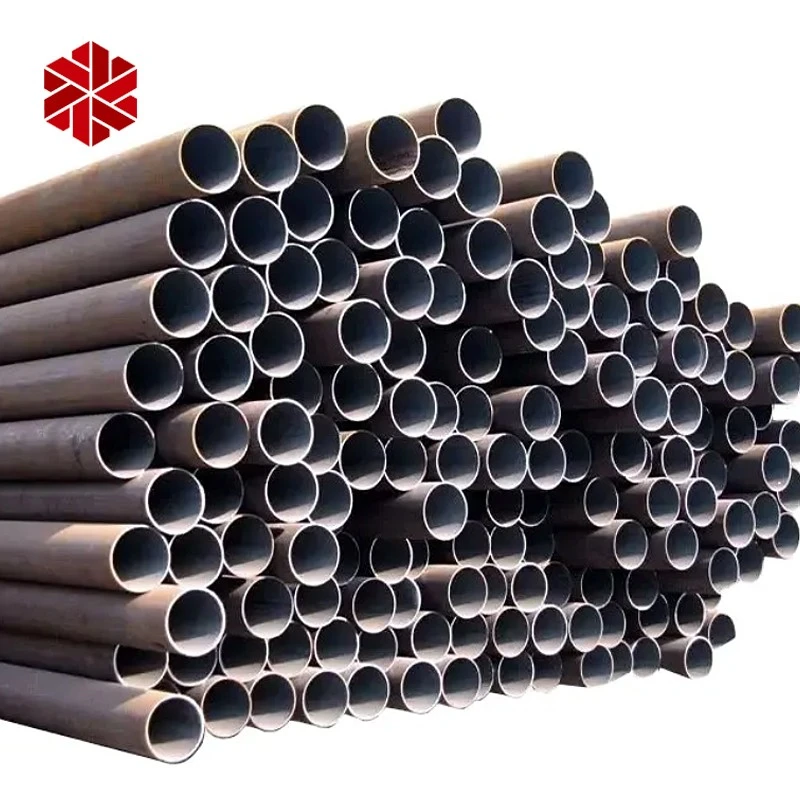

cold drawn steel tube 4
1/2
<< /span>
>

Cold Drawn Steel Tube

Cold Drawn Steel Tube in a full range of sizes and grades, with stock lengths, cut-to-length service, third party inspection and mill test certificates on request. Send your size list and destination port for a quote within 12 hours.

A hydraulic cylinder shop in Turkey came to us after scrapping a batch of pistons that would not hold tolerance. The tube they had been buying was sold as cold drawn, but the inside diameter wandered by nearly half a millimetre along the length, and no amount of honing saved the parts. Cold drawn tubing is bought for exactly one reason, which is that the dimensions hold, and when the drawing step is rushed you find out at the machining centre rather than at goods-in. Here is what the process involves and what it produces.

From billet to finished tube

The route starts with a solid steel billet, which is heated and then pierced to form a thick walled hollow shell. That shell is rolled and stretched over a mandrel until the wall thins to the target and the length grows. The tube is then cooled, and it is at this point that the cold drawing operation begins. The tube is pickled to remove scale, coated with a lubricant, and pulled through a die over a mandrel at room temperature. Because the metal is worked cold rather than hot, the final pass fixes the outside diameter and the wall with far less variation than a hot rolled product can offer, and it leaves a surface that needs little or no machining before use.

Low carbon tube for fluid service

Tubing drawn from 20 low carbon steel is the grade we ship most often for carrying things. Gases, petroleum products and chemical intermediates move through it in process plants, and the smooth bore and consistent wall make it straightforward to specify valves, fittings and flanges around. Low carbon material also welds predictably, which matters on site where a joint has to be made in a confined space and pass inspection first time. Where the line carries something corrosive, the tube can be supplied oiled or painted on the outside without affecting the bore.

Medium carbon tube for machined parts

Tubing in 45, 40Cr and comparable medium carbon steel goes the other way, into parts rather than pipelines. Automobile and tractor components are the classic destination: bushings, sleeves, shafts, hydraulic cylinders and the various spacers and pins that have to be turned, drilled and often heat treated after machining. Medium carbon material machines to a better finish and takes hardening, which is what a cylinder bore or a load bearing sleeve needs. If your drawing calls out a specific carbon content, send it across, because the difference between one grade and the next shows up in the heat treat response rather than on the outside of the tube.

cold drawn steel tube bundle with cut ends on display

What we check before dispatch

Outside diameter and wall are measured with a gauge at both ends of a sample from each bundle, and the inside diameter is checked with a plug gauge where the order specifies a bore tolerance. Straightness is verified over the full length, because a tube that runs out will not feed through a bar feeder or seat in a collet. Ends are cut square and deburred, and on request we will chamfer for welding or leave them prepared for machining. Each bundle carries a tag showing heat number, grade and size, and mill test certificates travel with the shipment.

Questions buyers ask us

Cold drawn or cold rolled, which one am I buying? Cold drawn tube is pulled through a die to set the size. Cold rolled refers to the strip or sheet that goes into a welded tube. If bore tolerance is the thing you care about, you want drawn.

Can I get a specific inside diameter tolerance? Yes, tell us the bore and the tolerance you need to hold and we will quote the drawing pass that achieves it.

Is the tube suitable for hydraulic service? For the cylinder and sleeve work, yes, in the medium carbon grades. Give us the working pressure so we can confirm the wall.

What lengths do you ship? Random lengths as standard, or cut to your list. Send the cut lengths and we will trim before packing so nothing is wasted in your yard.

cold drawn seamless tube showing smooth bore and wall

Get a quote

Send the outside diameter, wall, grade, inside diameter tolerance if it matters, quantity and destination port. We come back within 12 hours with per-tonne pricing, current stock and a realistic loading date. If a drawing calls for a tolerance we cannot hold on our own line, we will say so before you place the order rather than after you find out at the machine.
