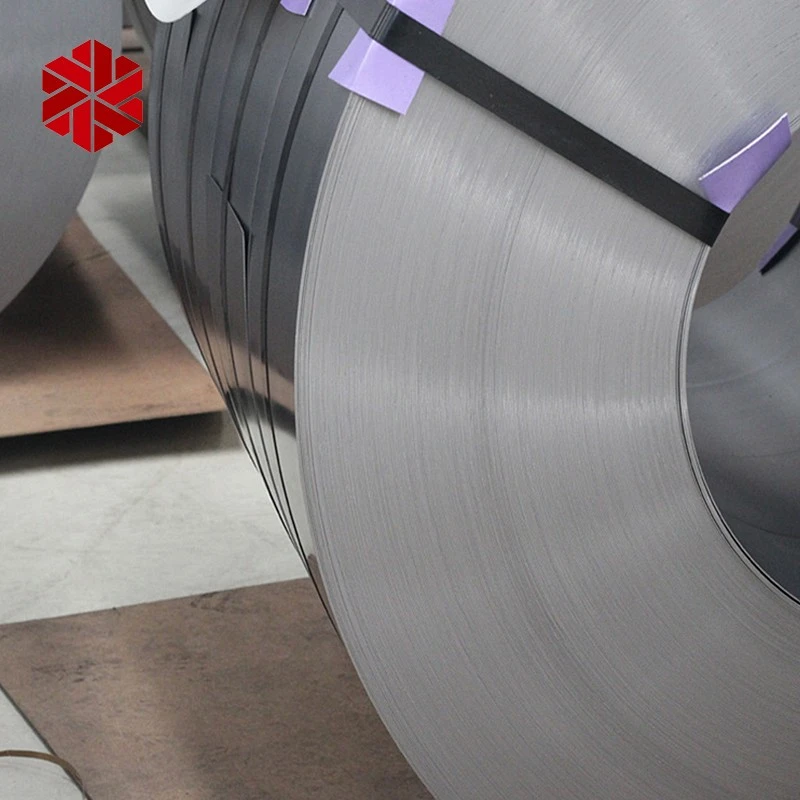

SPCC Cold Rolled Steel Sheet in Coil
SPCC Cold Rolled Steel Sheet in Coils are commonly used in the steel industry, distinct from hot-rolled coils.It refers to a steel strip that is directly rolled into a certain thickness by a rolling mill at room temperature and rolled into a whole roll by a winding machine.Compared to hot-rolled coils, cold-rolled coils have a shiny surface and high smoothness, but they generate more internal stresses and are often annealed after cold rolling.
Product Description
SPCC cold rolled steel sheet in coil is commonly used in the steel industry, distinct from hot-rolled coils. It refers to a steel strip that is directly rolled into a certain thickness by a rolling mill at room temperature and rolled into a whole roll by a winding machine. Compared to hot-rolled coils, cold-rolled coils have a shiny surface and high smoothness, but they generate more internal stresses and are often annealed after cold rolling.
|
Name |
Cold Rolled Steel Coil |
||
|
Standard |
GB/T 5213-2008,JIS G3141,DIN1623,EN10130 |
||
|
Material |
Q195, Q235,SPCC, SPCD SPCE,DC01,DC02,ST12 |
||
|
Thickness |
0.2-4.0mm |
||
|
Width |
600-2000mm, Normal width is 914/1000/1219/1250/1500mm |
||
|
Finish |
General, bright, dull, and mirror finish, oiled or non-oiled |
||
|
Coil ID |
508mm/610mm |
||
|
Coil weight |
3-12tons |
||
|
Packing |
Export standard packing or according to the customers' requirements |
||
|
Shipment |
Within 10-15 workdays,25-30days when the quantity is beyond 1000 tons. |
||
|
Application |
Steel pipe, Package, coating sheet basa |
||
Production process
1. Processing preparation
Firstly, it is necessary to cut, level, and remove rust residue from the already produced steel plates to ensure the quality of subsequent cold rolling processing.
2. Acid washing
The cut steel plate will enter the acid washing equipment to remove iron filings, rust slag, etc. through acid washing, making the surface of the steel plate smoother and smoother.
3. Cold rolling
After pickling, the steel plate will be sent to a cold rolling mill for multi-stage rolling, including pre-cooling, rough rolling, intermediate rolling, precision rolling, etc., to achieve the required thickness and accuracy.
4. Annealing
During the cold rolling process, steel plates will generate significant stress and strain, so annealing treatment is needed to reduce stress and improve physical properties.
5. Galvanizing or spraying
In order to enhance the durability and rust resistance of SPCC cold rolled steel sheet in coil, they are usually treated with anti-corrosion treatments such as galvanizing or spraying.
packaging & shipping
Packing for coil.
1) Inner packed with anti-rust paper.
2) Outer packed by steel sheet with steel straps.
3) Protect corner.
4) Bundle with steel strip.
5) Color could be according to customers' requirements
